How to Perform Electrical Continuity Testing on Cables

Why Verify Continuity Before Installation

A wire harness fails silently when a conductor breaks or when insulation breaks down. The most basic form of electrical testing confirms that a path exists between two points. Without this check, a connector may appear seated while the internal wire remains open. Engineers use this method to catch manufacturing defects before the harness reaches the field.

The goal is simple. You must prove that every conductor carries current and that no unintended path exists between conductors. A multimeter is the standard tool for this task. It provides a clear pass or fail result without needing a power supply.

Prerequisites for a Safe and Accurate Test

Before touching any wire, prepare the workspace and the equipment. A faulty meter or a live circuit can ruin the reading or injure the operator.

1. Inspect the multimeter. Check the battery and confirm the probes are clean and the cable is not frayed. A weak battery can cause false open readings.
2. Verify the range. Set the meter to the lowest resistance or continuity setting. If the meter has a dedicated continuity function, use it.
3. Disconnect the harness. Remove the harness from the power source and any load. Testing a live circuit is dangerous and will give invalid results.
4. Identify the test points. Use the wire map or the harness design document to know which conductors must be continuous and which must be isolated.

Having these items ready prevents interruptions. It also ensures that the reading reflects the wire itself, not the rest of the system.

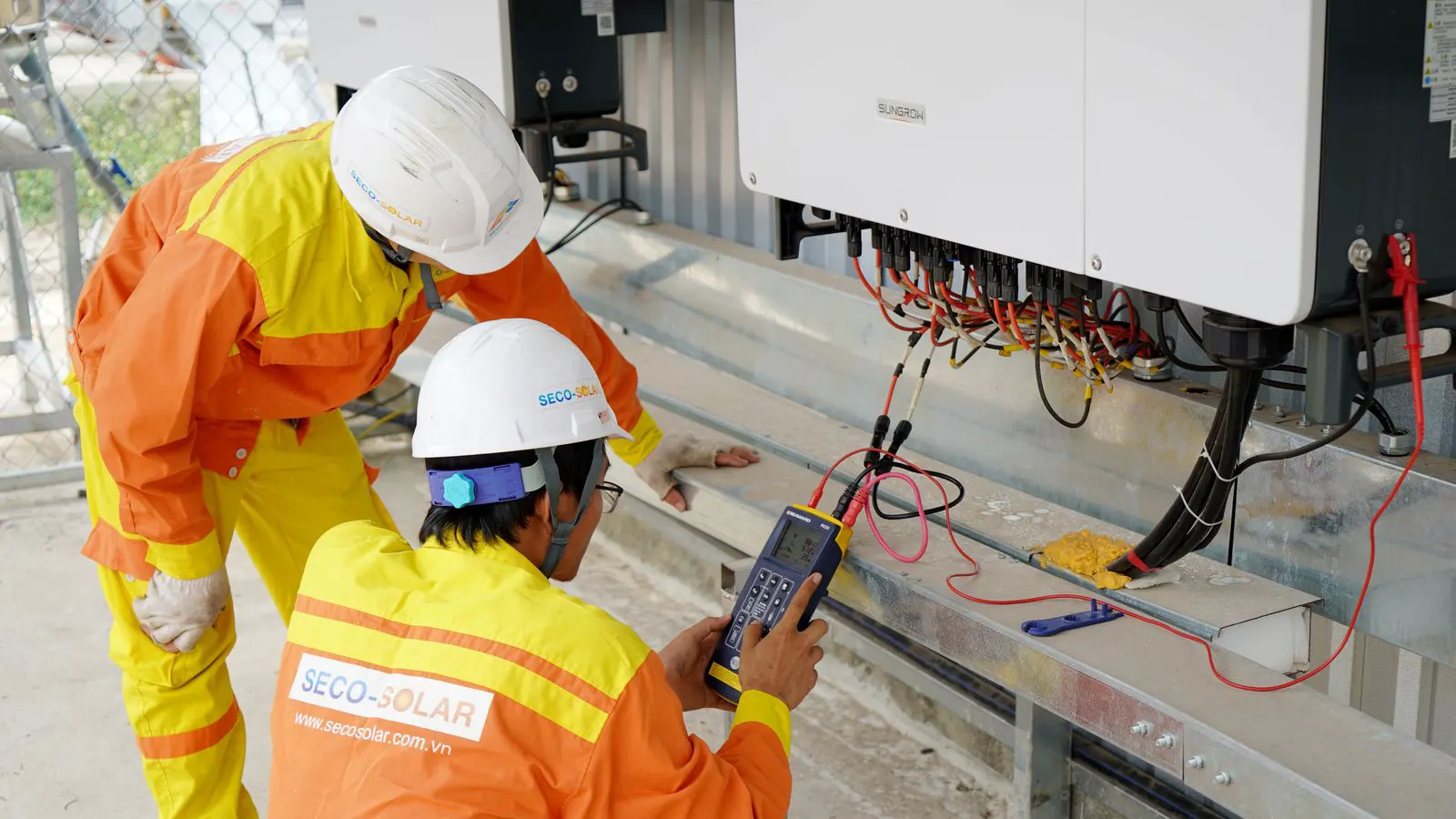

Step-by-Step Electrical Testing Procedure

Follow this sequence to test a single harness. Each step has a specific purpose. Skipping one can lead to a missed defect.

1. Zero the meter. Touch the two probes together. The reading should be near zero ohms. If it is not, recalibrate or replace the meter. This confirms the meter is functioning correctly.
2. Test for continuity on a known good conductor. Use a short, intact wire as a reference. The meter should beep or show a low resistance value. This establishes a baseline for what a “good” reading looks like.
3. Disconnect the test point from the harness. At one end of the conductor, remove the terminal or plug the wire from the connector. This isolates the conductor so you are testing only the wire, not the entire assembly.
4. Place one probe on the conductor end. Grip the wire firmly between the probe tip and your finger to ensure a good contact. Poor contact is a leading cause of false opens.
5. Place the second probe on the other end. Repeat the grip technique. The meter will display a resistance value or a continuity tone.
6. Record the result. Note the reading in your test log. A value within the expected low range indicates continuity. A high value or no tone indicates an open circuit.
7. Repeat for all conductors. Move to the next wire. Do not skip conductors just because the previous one passed. Each wire is a separate circuit and each can fail independently.
8. Check for shorts. With the harness connected at both ends, touch one probe to a conductor and the other to a different conductor. The reading should be infinite or very high. A low reading indicates a short.
9. Check for ground faults. Touch one probe to a conductor and the other to the harness shield or frame. The reading should be high. A low reading means the insulation is damaged or the conductor has touched the shield.

This sequence covers the three main failure modes: open circuits, shorts between conductors, and shorts to ground.

Interpreting the Multimeter Readings

The multimeter gives you numbers, but you must interpret them correctly. The display usually shows milliohms or ohms. A healthy cable assembly should show a very low resistance. The exact value depends on the wire gauge and length. Thicker and shorter wires have lower resistance.

If the meter beeps, the circuit is continuous. If it shows a high number, often labeled as an open circuit or infinity, the circuit is broken. Look for trends. If a reading is slightly higher than your baseline but still low, it may indicate a poor connection at a crimp or terminal. It does not necessarily mean the wire is broken.

Consider the environment. A cold workshop may cause higher readings than a warm one. Resistances change with temperature. If you are comparing readings from different days, keep the ambient temperature in mind.

Common Mistakes in Cable Inspection

Even experienced technicians make errors during electrical testing. These mistakes often lead to missed defects or unnecessary rework.

Mistake	Why It Happens	Consequence
Testing a live circuit	The operator forgot to disconnect the power source.	The meter can be damaged, and the reading is invalid.
Poor probe contact	The probe is not pressed firmly against the bare conductor.	The meter shows a high resistance or no tone.
Ignoring the shield	The tester only checks conductor-to-conductor shorts.	A ground fault goes undetected until after installation.
Using the wrong range	The meter is set to a high resistance range.	Small resistances appear as zero, hiding poor connections.
Not isolating the wire	The wire remains connected to the connector.	The test includes the connector and terminal, which may be the fault.

Avoiding these errors requires discipline. Double-check your setup before every test. If a reading seems off, do not assume the wire is bad. Recheck your technique first.

Final Verification and Documentation

Once you have tested all conductors, perform a final verification step. This step ensures that the harness meets the release criteria.

1. Review the test log. Compare every recorded reading against the acceptance criteria. Look for any values that were near the limit.
2. Re-test any marginal results. If a reading was close to the maximum allowed value, test it again. A consistent marginal result indicates a potential defect.
3. Perform a visual inspection. Look for damaged insulation, crushed wires, or misaligned connectors. A visual defect that the meter missed can still cause failure.
4. Sign off on the test report. The final verification is not just about the numbers. It is about confirming that the process was followed correctly.
5. Store the documentation. Attach the test log to the wire harness testing checklist for final release. This record supports quality audits and future troubleshooting.

This final step closes the loop. It turns raw data into a quality decision.

Troubleshooting Failed Tests

If a test fails, do not immediately condemn the harness. First, determine where the fault lies.

Open Circuit. If the meter shows no continuity, the wire is broken. Check the crimp points and the connector terminals. A broken wire often occurs at a bend point or where the wire was pulled too tightly.

Short Circuit. If the meter shows a low resistance between two conductors, the insulation is damaged. Look for nicks, cuts, or areas where the wires are pinched. You may need to strip back the insulation to find the exact location.

Intermittent Faults. If the reading fluctuates, the connection is loose. Vibration can cause this. Check the crimp quality and the terminal tightness.

When you identify the fault, repair it. Then repeat the full test sequence. A repaired harness must pass every check before it is considered good.

Maintaining Your Test Equipment

Your multimeter is only as good as its calibration. Over time, meter accuracy can drift. Regular maintenance keeps your electrical testing reliable.

• Clean the probes. Wipe the tips with a dry cloth after each use. Oxidation on the probe tips can increase contact resistance.
• Check the battery. Replace it when the reading starts to drift low.
• Store it properly. Keep the meter in its case. Protect it from drops and moisture.
• Calibrate it. Take the meter to a calibration service once a year or as required by your quality system.

A well-maintained meter gives you confidence. It also protects your reputation. When a customer asks for test records, you want to know that the data came from a trusted instrument.
