Wire harness quality control is shifting from manual spot checks to continuous, data-driven automation. Buyers should expect higher precision, integrated design validation, and stricter traceability. Prepare by updating supplier specifications and investing in test infrastructure that supports these changes.
- Quality control now extends beyond final inspection to include design validation and in-process data capture.
- Automation and machine vision reduce human error in repetitive checks like connector pin alignment and strain relief.
- Digital traceability systems link test data directly to the physical harness, simplifying audits and recalls.
- Industry standards are tightening around environmental testing and intermittent fault detection.
- Buyers should prepare by updating specifications to demand digital test reports and real-time data access.
Where Wire Harness Quality Control Is Heading
Quality control in the wire harness industry is moving away from the final line. It is no longer just a pass or fail check at the end of production. The modern approach captures data at every stage, from design simulation to the final pin test. This shift responds to two pressures. Product complexity is rising, and customers demand faster delivery without sacrificing reliability.
The result is a testing culture that values prevention over detection. Teams use simulation and automated inspection to catch errors before a single connector is crimped. When a fault does appear, digital records allow engineers to trace it back to a specific batch of terminals or a specific test station. Consider a multi-channel harness for an electric vehicle powertrain. If an intermittent open circuit appears in the field, the manufacturer can isolate the issue to a specific crimping station that ran during a specific shift. This granular visibility turns a field failure into a targeted process correction rather than a costly full-line audit.
How Automation Changes the Inspection Process
Manual inspection still has a place. A human eye can spot a kink in a sheath or a poorly seated connector that a sensor might miss. But for repetitive checks, automation is taking over.

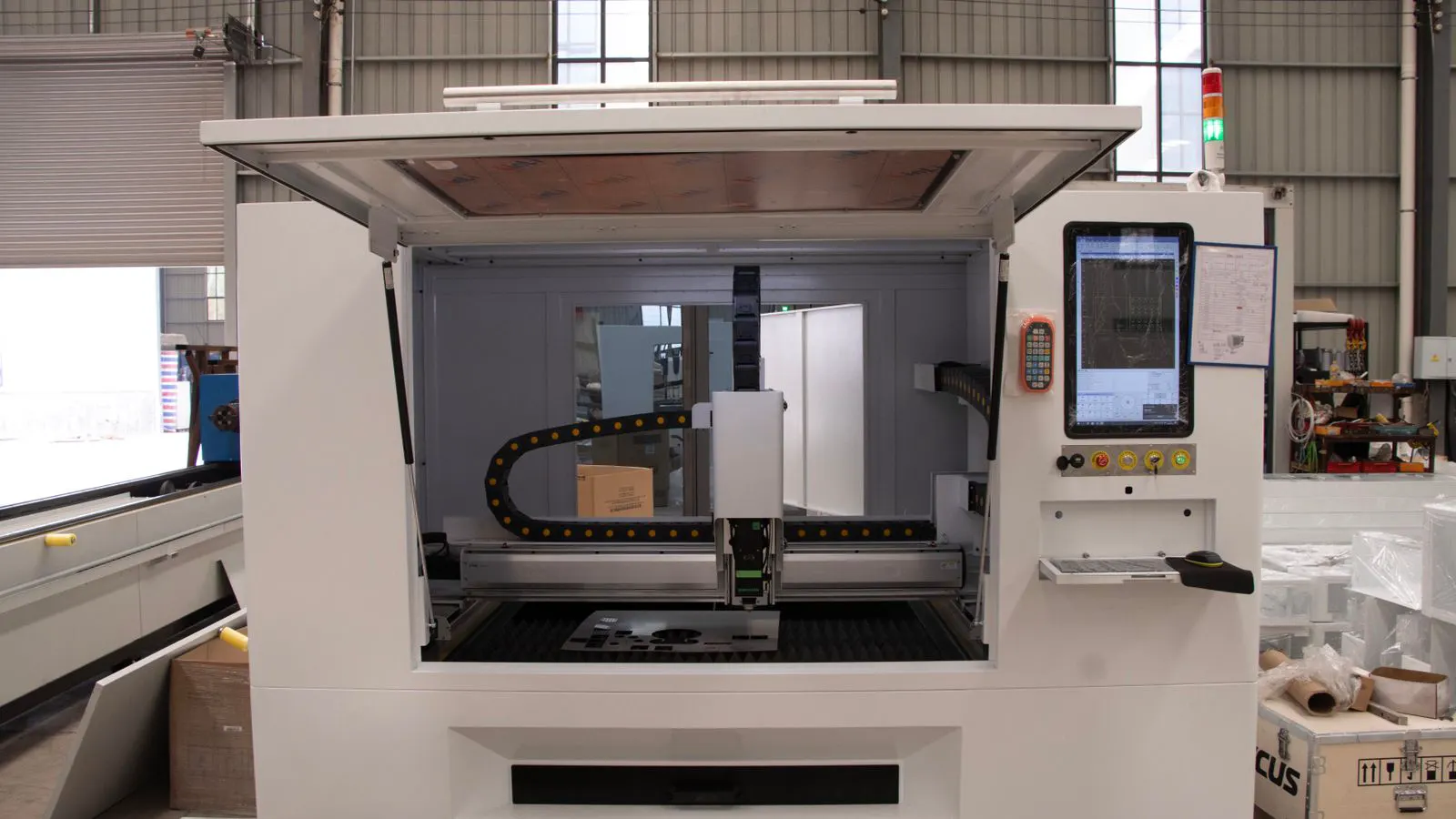

Machine vision systems now inspect connector seating, pin alignment, and strain relief at speeds that exceed manual checks. These systems use calibrated cameras and reference models to flag deviations. A misaligned pin by a fraction of a millimeter can be detected and logged automatically. The cameras often use structured light or high-resolution optical sensors to measure the physical position of pins relative to the connector housing. If a pin is pushed in too deep, the contact may not engage properly, causing high resistance or complete open circuits under load. Automation catches this before the harness moves to the next station.
The value here is consistency. A manual inspector may miss a defect after eight hours on the line. A machine vision system does not tire. It applies the same tolerance to the first harness and the ten-thousandth. For buyers, this means fewer escapes and fewer recalls. In high-volume production, even a small variance in crimp quality can lead to thermal hotspots. Automated systems measure the crimp height and cross-section of the terminal to verify that the conductor is compressed to the specified window. This reduces the risk of field failures caused by poor electrical contact.
| Inspection Task | Manual Method | Automated Method | Key Benefit |
|---|---|---|---|
| Pin Alignment | Visual check with magnifier | Machine vision camera | Consistent detection of sub-millimeter errors |
| Strain Relief | Physical squeeze test | Tensile testing machine | Quantified force data for every unit |
| Continuity | Multimeter spot checks | Automated test fixture | 100% coverage with digital logging |
| Insulation Resistance | High-voltage tester | Automated test station | Faster throughput with safety interlocks |
| Bending Radius | Caliper and visual check | Laser scanning | Precise measurement of bend distortion |
The Rise of Digital Traceability
A wire harness today is rarely just a bundle of wires. It is a documented artifact. Every crimp, every connector, and every test result should have a digital identity.
Digital traceability systems link test data to the physical product. When a harness is flagged in the field, the manufacturer can retrieve the exact test report from the production line. This includes the operator, the time of test, the environmental conditions, and the specific test fixture used. For example, if a connector fails to mate properly in a customer’s assembly, the supplier can pull the digital record for that specific serial number. The record shows the torque applied to the housing screws, the result of the pin alignment scan, and the continuity values for each circuit.
This capability changes how suppliers and buyers interact. Instead of relying on a paper certificate of conformity, buyers can access a digital record. They can verify that a specific lot of connectors passed tensile tests before they were shipped. This level of transparency is becoming a standard expectation in automotive, aerospace, and medical markets. In the medical device sector, where a single wire failure can impact patient safety, traceability is not optional. It is a regulatory requirement. Suppliers must be able to show that every unit passed specific electrical and mechanical tests under defined conditions.
Shifting Standards and Testing Requirements
Industry standards are not static. They evolve to reflect new failure modes and safety requirements. Buyers should watch for changes in how intermittent faults are defined and tested.
The focus is expanding from basic continuity and insulation resistance to more complex scenarios. This includes testing for vibration-induced micro-fractures and thermal cycling effects. A harness may pass a static test but fail after months in a vibrating vehicle engine bay. Manufacturers are responding by incorporating accelerated life testing into their quality control plans. For instance, a supplier might subject a sample of harnesses to a vibration table that simulates the shock loads of a rough road. They then monitor the electrical continuity of each circuit to detect micro-fractures in the wire insulation or conductor.
Environmental testing is also becoming more rigorous. Salt fog, humidity, and chemical exposure tests are moving from optional add-ons to baseline requirements for many sectors. For buyers, this means that a supplier’s quality control plan should explicitly state which environmental tests are performed and how often. A marine-grade harness, for example, must withstand prolonged exposure to salt spray without losing insulation integrity. If a supplier does not test for this condition, the harness may fail prematurely in its intended environment. Buyers should request test reports that show the specific parameters used, such as temperature, humidity levels, and exposure duration.
What This Means for Buyers and Engineers
The shift in testing and quality control requires a change in how buyers write specifications and how engineers validate designs. The goal is to align the testing strategy with the actual failure risks of the application.
Buyers should start by asking for digital test reports. A supplier that provides a PDF of test results is good. A supplier that provides a live link to a database is better. This access allows your team to audit the process without waiting for a physical inspection. You can check the trend of insulation resistance values over time. If the values are drifting upward, it may indicate a problem with the insulation material or the curing process. This early warning prevents a larger quality issue from reaching the market.
Engineers should move design validation earlier. If a simulation shows a potential stress point at a connector, the testing plan should include a specific check for that area. This closes the loop between design intent and production verification. For example, if a Finite Element Analysis (FEA) predicts that a wire will experience high stress at a bend point, the production test should include a bend fatigue test on that specific location. This ensures that the harness is built to handle the real-world loads it will face.
How to Prepare for These Shifts
Preparing for the future of wire harness testing is not about buying the most expensive test equipment. It is about updating your processes and supplier relationships.
- Review your current specifications. Do they require digital traceability? If not, consider adding a clause that mandates test data retention and access. This ensures that you can audit the supplier’s process and verify that their claims are backed by data.
- Ask suppliers about their in-process controls. Do they check strain relief after crimping, or only at final release? In-process checks catch errors earlier and reduce rework. If a crimp is bad, it is cheaper to fix it at the crimping station than to disassemble a finished harness at the final test point.
- Evaluate your test fixtures. If you perform final testing in-house, ensure your fixtures can capture data for each unit. A simple log of pass/fail is not enough. You need parameters. For example, record the exact voltage and current values during a continuity test. This data helps identify subtle issues that a simple pass/fail check would miss.
- Align on failure definitions. Work with your supplier to define what constitutes an intermittent fault. Agree on the test conditions that will reveal it. An intermittent fault may only appear under specific vibration or thermal conditions. If you and your supplier have different definitions, you will have different expectations for what constitutes a defect.
- Plan for data integration. If you use a PLM or ERP system, consider how test data from your suppliers can flow into your records. This simplifies compliance and lifecycle management. It also allows you to analyze data across multiple suppliers and identify trends that could affect your entire product portfolio.
The Bottom Line
The future of wire harness testing and quality control is data-driven and automated. This is not a trend that will pass. It is a structural change in how products are built and verified.
Buyers who adapt will find fewer field failures and faster resolution when issues do occur. They will have visibility into the quality of their products from the moment a wire is cut to the moment it is installed. Suppliers who invest in these capabilities will differentiate themselves in a crowded market.
The goal is not perfection. No product is perfect. The goal is predictability. When you can predict how a harness will behave, and you have the data to prove it, your quality control program is working. That is the standard to hold suppliers to, and the standard to build your own processes toward.
Frequently asked questions
Does automation replace manual inspection entirely?
No. Automation handles repetitive, high-volume checks with high consistency. Manual inspection remains useful for complex, one-off defects or when a specific area requires human judgment.
What is the most common reason for harness failures in the field?
Intermittent electrical faults caused by poor crimp quality or connector movement are among the most common. This is why in-process checks and accelerated life testing are gaining importance.
How do I verify a supplier’s quality control claims?
Request digital test reports and audit trails. Ask for a sample test report that includes parameter data, not just a pass/fail status. Visit the production line if possible to see the test fixtures in operation.
Is digital traceability mandatory in all industries?
It is not mandatory everywhere, but it is becoming a de facto standard in automotive, aerospace, and medical. Even in less regulated sectors, it is increasingly expected by large OEMs and system integrators.
How often should I update my wire harness testing checklist?
At least annually, or whenever you change a design, a material, or a supplier. New failure modes can emerge, and industry standards evolve. A static checklist will eventually miss a critical risk.
